Titan Tube is the ultimate LED tube for filmmakers, studios, event technicians and any creative person. It emits powerful, tunable whites with ultra-high color rendering as well as colored light which can be applied to individual pixels or the whole tube. The tube offers unlimited range of usage; indoor or outdoor, AC-powered or on battery, on the go with the AsteraApp, with wired or wireless DMX.

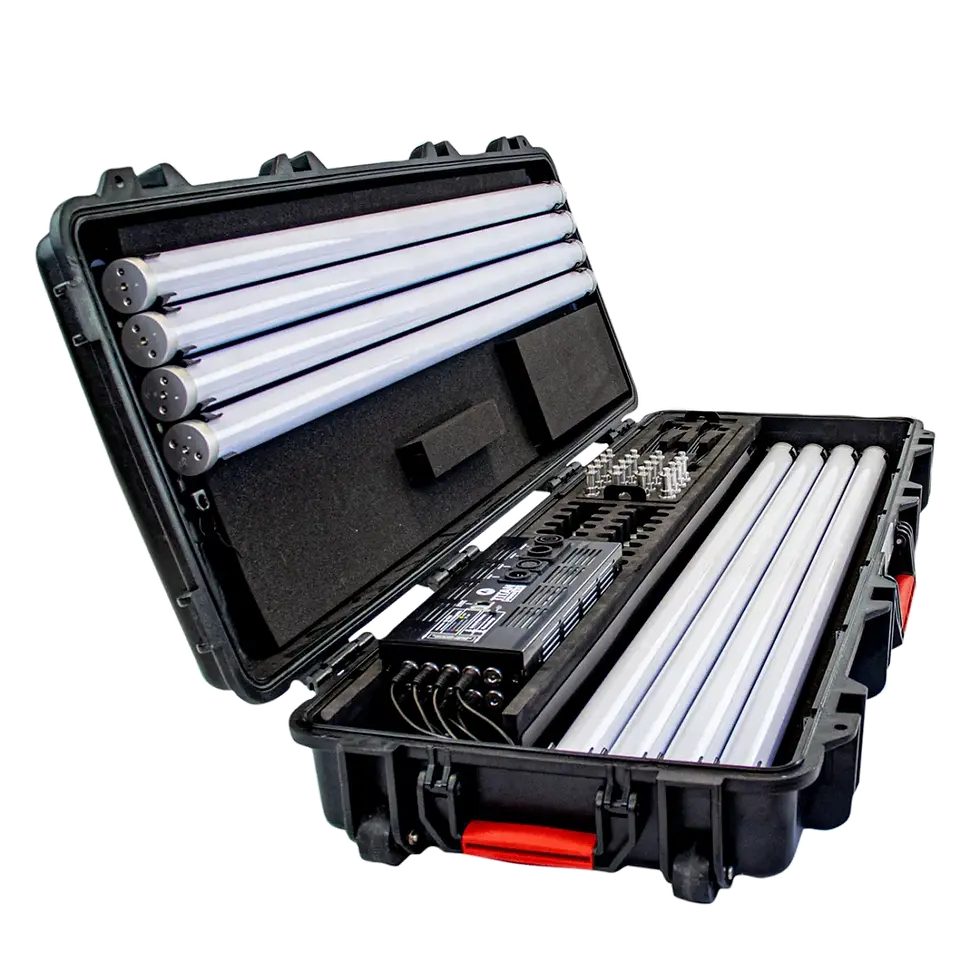

Astera Titan - 8-Way Kit
LED Engine
Titan LED Engine
Colors
RGBMintAmber
Total LED Power
72 W
LED Power draw
48 W
Luminous Flux 3200K
2 535 Lumens
Luminous Flux 4000K
2 900 Lumens
Light Output 3200 K @ 1m
708 Lux
Light Output 4000 K @ 1m
785 Lux
CRI(Ra)/TLCI 3200-6500K
≥96
Beam Angle
135° x 115°
Field Angle
175° x 160°
Strobe
0 – 25 Hertz
Pixel
16
Battery Runtime
Up to 20 hours
Battery Runtime (max. Brightness)
1 h 45 m
Battery Lifetime
70 % after 300 cycles
Charging Time (nominal)
3 hours
DC Input
24 VDC – 2 A
DC Connector
5.5 mm x 2.1 mm
Wired DMX
Yes (via FP1-PWB / FP3-DTL / PWB-2-86)
CRMX Receiver
Built-in
BluetoothBridge BTB
No
Yes
Wireless Protocols
CRMX, UHF
CRMX, UHF, Bluetooth, WiFi
Wireless Range
CRMX/UHF up to 300 m / 330 yds
CRMX/UHF up to 300 m / 330 yds Bluetooth up to 3 m / 3.3 yds
Infrared Control
Yes
Housing Material
Polycarbonate, metal end caps
IP Rating
IP65 (only with FP1-SP)
Ambient Operating Temperature
0 – 40 °C / 32 – 104 °F
Weight
1.35 kg / 3 lbs
Dimensions (L x Ø)
1035 mm x Ø 43 mm / 40.7" x Ø 1.7"
Mounting Options
2x M5 thread, 2x Holder (with 2x M5 and 1x 1/4"-20UNC thread), 1x TubeStand
